16S

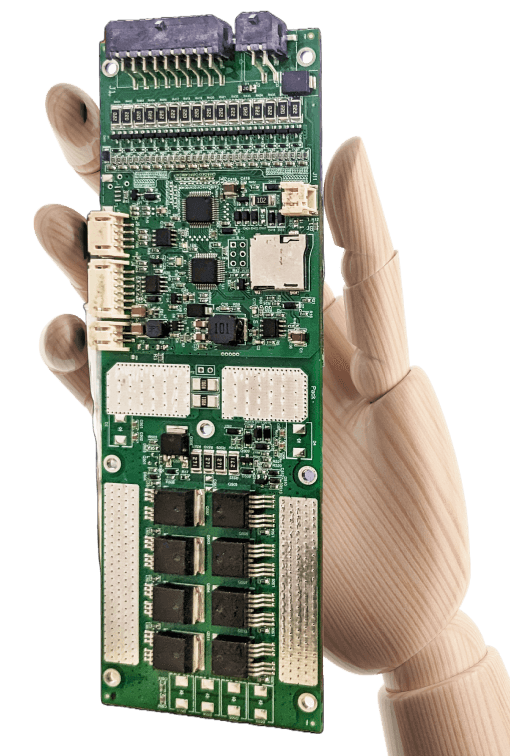

Smart BMS

Electrifuel developed a smart battery management system with essential and advanced features that help to improve the life and performace of the battery.





What are the Features?






Soc

SOC Estimation

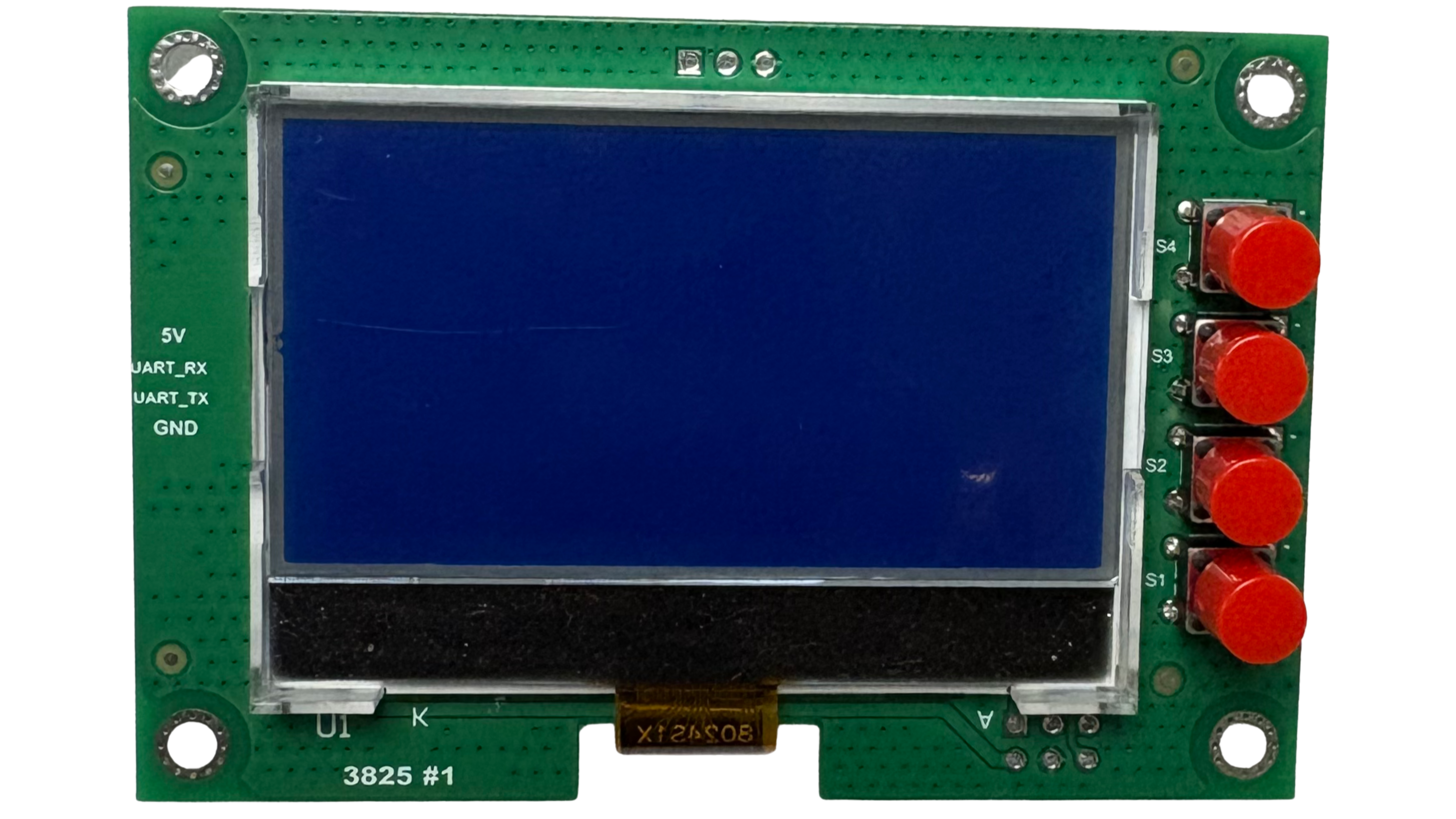

SOC data can be observed on the display
which can show 4 data fields independently,
which include Battery Voltage, Current, State
of battery, and soc percentage.

cell

Cell Balancing

Electrifuel's BMS will help to balance your
battery with passive cell balancing up to
1500 mA to improve the performance and
life of battery pack.

cell

Data Logging

BMS is also enabled with the data logging
option for monitoring it's state, calculating
secondary data, reporting that data.

cell

Communication

Electrifuel Battery Management is enabled
with all advance and required communication
protocols UART, Bluetooth Low Energy (BLE), Controller Area Network (CAN).

cell

SOH Estimation

The SOH of a battery is a measure of its overall
health and is used to indicate the battery's
remaining capacity and expected lifetime.

cell

Paralleling

We can connect multiple batteries, in parallel
to increase their overall capacity or
redundency.

cell

Over the Air Update

Wireless communication technologies such as
cellular networks, or Bluetooth to download and install the updates.














Our BMS Variants

Our BMS Variants

BMS-ELE-16

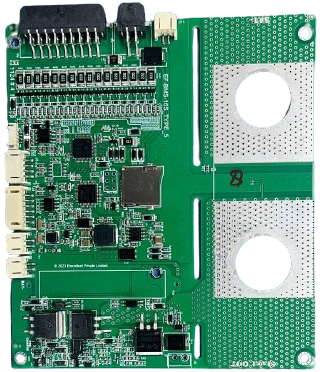

BMS-Contactor based


Data Sheet

300.5mm * 101.22mm


CAN2.OB, UART, RS232
and BLE communication
enabled


Passive cell balancing
up to 1000mA


All critical faults handling
with two levels of
protection


High measurement
accuracy


Upto 100A current rating


Very efficient thermal
management


Lifetime data logging


Plugable OLED and Buzzer
for audio and visual alarm

BMS-ELE-16

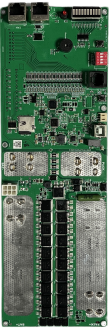

EF16S-ESS


Data Sheet

130.00 mm* 114.37 mm


CAN2.OB, UART, RS232
and BLE communication
enabled


Passive cell balancing
module active balancing


All critical faults handling
with two levels of
protection


High measurement
accuracy


Upto 100A current rating


Very efficient thermal
management


Lifetime data logging


Plugable OLED and Buzzer
for audio and visual alarm

BMS-ELE-16

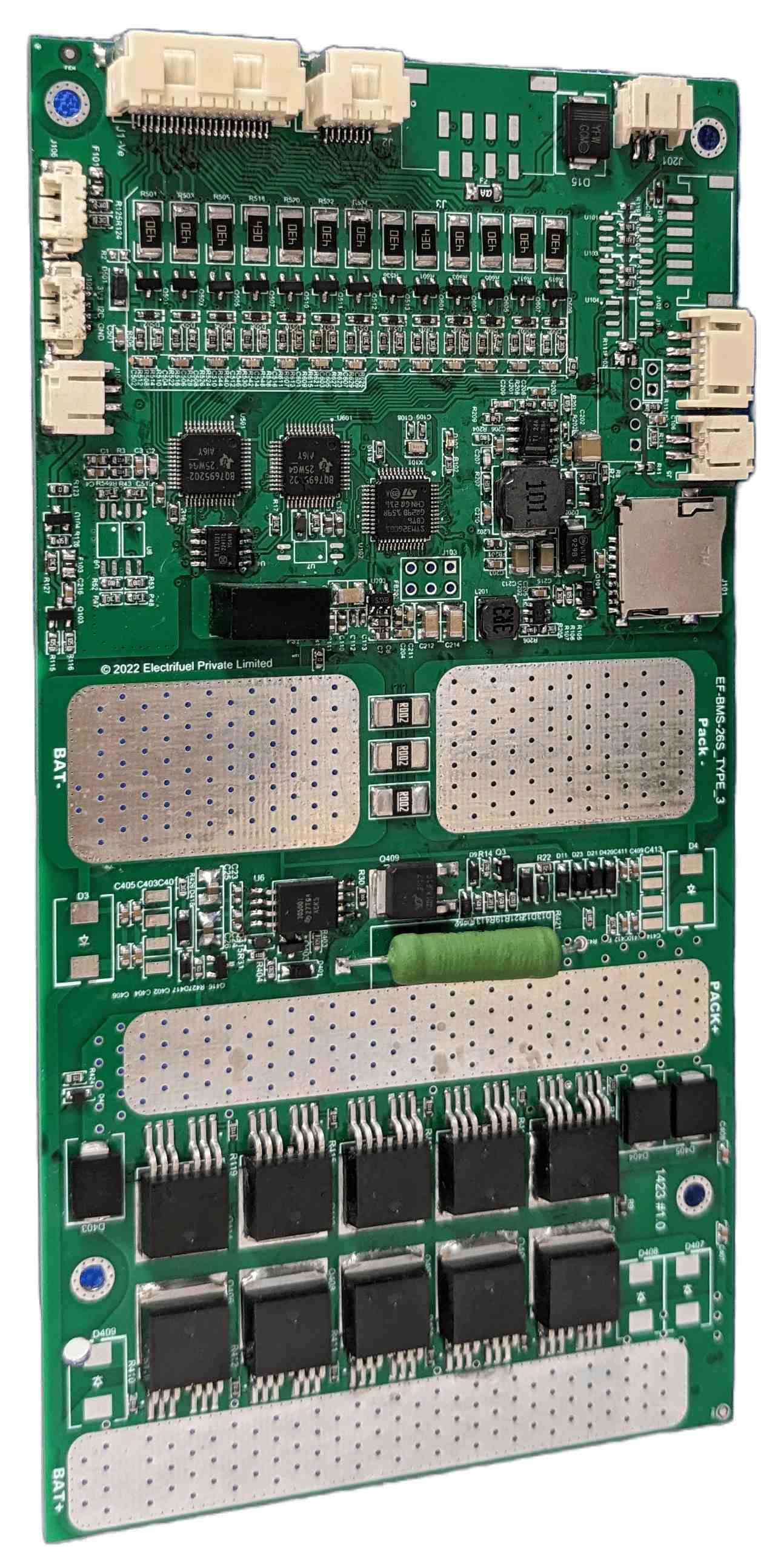

BMS-26S


Data Sheet

88.4 * 170.99 mm


CAN2.OB, UART, RS232
and BLE communication
enabled


Passive cell balancing
up to 200mA


All critical faults handling
with two levels of
protection


High measurement
accuracy


Upto 100A current rating


Very efficient thermal
management


Lifetime data logging


Plugable OLED and Buzzer
for audio and visual alarm

BMS-ELE-16

BMS-16S

AIS - 156 Compliant


Data Sheet

60 * 180 mm


CAN2.OB, UART, RS232
and BLE communication
enabled


Passive cell balancing
up to 200mA


All critical faults handling
with two levels of
protection


High measurement
accuracy


Upto 100A current rating


Very efficient thermal
management


Lifetime data logging


Plugable OLED and Buzzer
for audio and visual alarm

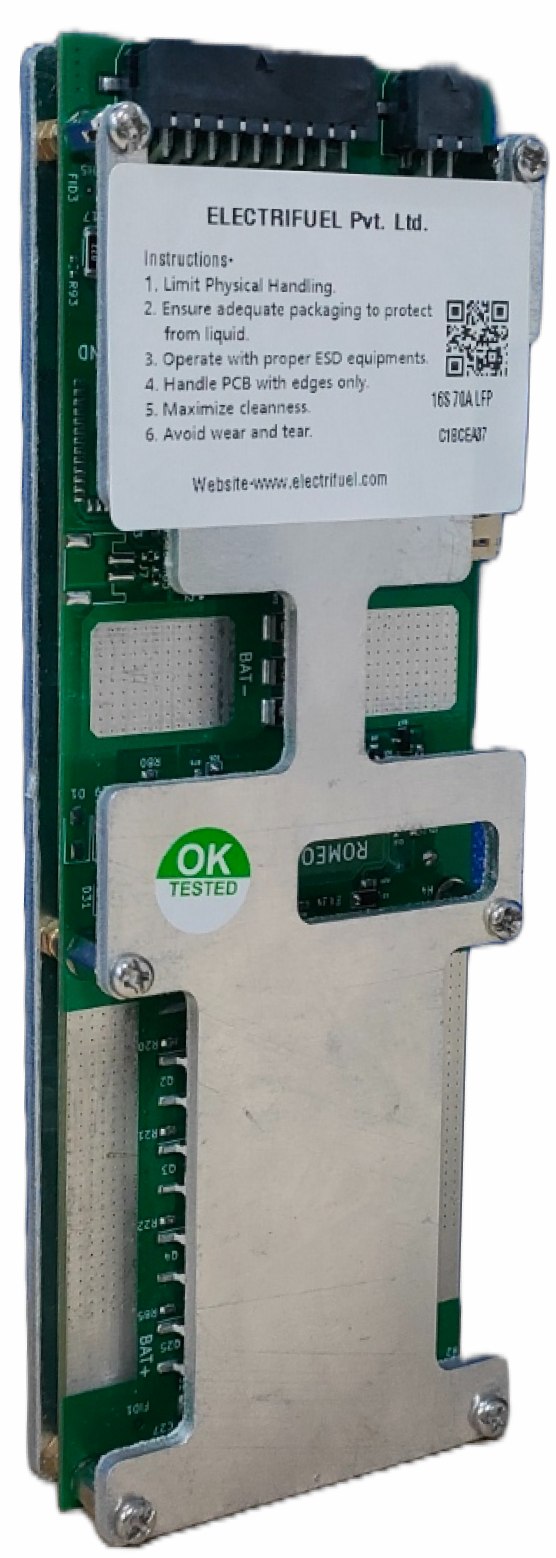

ROMEO

ROMEO

Type 1


Data Sheet

60 * 175 mm


Compact BLE
communication
enabled(Optional)


Passive cell balancing
up to 65mA


All critical faults handling



High measurement
accuracy


Upto 100A current rating


Very efficient thermal
management


-


-


BMS Attachments

BMS Attachments

Connect Us

to know more!









Electrifuel create the infrastructure that
supports electric mobility and change the
dependency of the mobility on the carbon
fuel energy to the clean and green energy.
